High Rebound Polyurethane Foam Production Line With PLC Digital Touch Screen

High Rebound Polyurethane Foam Production Line With PLC Digital Touch Screen

  • High Rebound Polyurethane Foam Production Line With PLC Digital Touch Screen
  • High Rebound Polyurethane Foam Production Line With PLC Digital Touch Screen
High Rebound Polyurethane Foam Production Line With PLC Digital Touch Screen
Szczegóły Produktu:
Place of Origin: Guangdong, China (Mainland)
Nazwa handlowa: ZHMACH
Orzecznictwo: CE
Model Number: ZHF-2017
Zapłata:
Minimum Order Quantity: one set
Cena: inquiry
Packaging Details: foam machine Automatic continously foam making machine nude packing together with some paper and plastic film and foam sheet some small spare parts in wooden box one standard machine need 1*20GP 2*40HQ
Delivery Time: 45days after receive downpayment
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1.5 sets per month
Kontakt
Szczegółowy opis produktu
Rodzaj produktu: Automatyczna maszyna do ciągłego wytwarzania piany Napięcie: 3PAHSE 380V
pompa maszynowa: US VIKING /CHN shanghai hangfa/JAN SHIMADZU Przepływomierz: Szklany przepływomierz
System ściągania RS: System ciągnięcia R.S. z folią z tworzywa sztucznego Sposób sterowania maszyną: automatyczne sterowanie PLC i inwerterem
Przecinak do bloków: Podwójny nóż z ostrzem i piłą Typ Specjalny: automatyczne wykonanie poziome
Lakierki: US. NAS. Viking/ Chinese/ Japanese Wikingowie/Chińczycy/Japończycy falownik: Siemens / Delta / Danfoss
High Light:

linia do wytłaczania arkuszy pianki pe

,

sprzęt do produkcji pianki

,

linia do produkcji pianki o wysokim odbiciu



Full Automatic High Rebound Polyurethane Foam Production Line With PLC Digital Touch Screen



Product Description

This equipment is used in soft PU products.Fomaing Density Range : 8-70kg/CBM. The ideal Foam products are involved with Furniture,Shoes,Bra and Electricals field,also suitable for Mattresses,Sofa,Package,Cloths and Car industry.User can save over two hundred different of recipes,To adust and change them by user at any time.user can remote control it by internet that reduce production cost scientific and directly.PLC Digital Touch Screen or Electric Control System.----This machine can change the formulation no need stop machine,no need test flow,The degree of resistance to yellow can reach 3~5 international standard,cooperate the customer's request to offer different formular,and training the foaming engineer.

For the process of foaming:


Loading all the raw materials inside the material tank with the loading system--control the temperature of the raw material inside the tank with the chiller--check the flow of all the raw materials before foaming--make some small sample test before foaming (make sure the flow and everthing is correct)--Put the karft paper and the plastic film-- foaming process


Main specification


Model Pass Caliber Use Qty Brand
K-301L/75DA cross valve G2″ POP, PPG,CaCO3,Foam 3 Korea
K-301L/63DA p cross valve G1″ TDI foam 1 Korea
K-301L/32DA cross valve G½″ Other small material, Flame retardant, Anti-yellow 9 Korea
DK800 glass flow meter 20-200 L/h AIR 1 China
FA10-15 glass flow meter 40~400L/H H2O 1


China

FA10-25F glass flow meter 150~1500L/H MC 1


China

FA10-25F glass flow meter 600~6000L/H TDI 1
Transducer speed adjusted head Φ25*2000mm foam 1 Qianghui


Material pot types: (The work pressure in the pot is normal pressure)



Type Use Specification Qty
Big material tank PPG 5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system 1
Big material tank POP 5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system

1


Big material tank CaCo3 5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system 1
Big material tank TDI 5m³/δ5mm A3 steel plate, with temperature controlling, stirrer, filter system

1


Big material tank Flame retardant 2m³/δ3m stainless steel, with filter system 1
Big material tank MC 2m³/δ2mm stainless steel, with filter system 1
Small material tank Si 180L/δ1mm stainless steel 1
Small material tank A-33 180L/δ1mm stainless steel, with filter system 1
Small material tank T9 180L/δ1mm stainless steel, with filter system 1
Small material tank H2O 180L/δ1mm stainless steel 1
Small material tank Color 180L/δ1mm stainless 1
Small material tank Anti-yellow 180L/δ1mm stainless steel 1
Small material tank Black 180L/δ1mm stainless steel 1
Floor powder mixing tank PPG, POP, Powder 1.5m³/δ3mmA3 steel plate, with filter system 1
Filter tank POP, Powder 1.5m³/δ4mmA3 steel plate 1



Our Services

1.We will help to design the layout of the machine that put in your factory.We will send 2-4 experience engineers to install and testing the machines.
2.We will teach your engineer how to operate the machine and how to maintain the machines.
3.We will give you the machine operation manual and the best formulation for target products that you are going to make.
4.We will help to buy the best raw material for making the foam if you needed.

Q: How many days for the install and testing of the machine?

A: After all the machine in your factory we will send 1-2 engineer help to install the machine you must send someone to help about 30 days installation will finished. After that one electrician and one foaming engineer will come to connecting the cable and run the machine in 15days. Total 45days the machine can be running.

Q: For the cost of the engineer how much I need to pay?

A: You need to pay USD50 one day for one engineer and also need to pay for the visa fee turn-round ticket fee and food hotel.

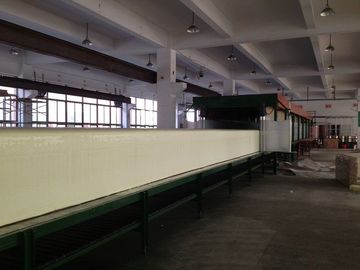

The main part of the machine

High Rebound Polyurethane Foam Production Line With PLC Digital Touch Screen 0

High Rebound Polyurethane Foam Production Line With PLC Digital Touch Screen 1
