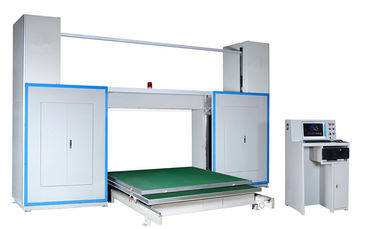

Collapsible Mount Type Table Horizontal Foam Contour Cutting Machine with Oscillating Blade

Collapsible Mount Type Table Horizontal Foam Contour Cutting Machine with Oscillating Blade
Collapsible Mount Type Table Horizontal Foam Contour Cutting Machine with Oscillating Blade

Duży Obraz :  Collapsible Mount Type Table Horizontal Foam Contour Cutting Machine with Oscillating Blade

Szczegóły Produktu:
Place of Origin: Guangdong China (Mainland)
Nazwa handlowa: ZHMACH
Orzecznictwo: CE Certificate
Model Number: ZH-CNC-03
Zapłata:
Minimum Order Quantity: one set
Cena: inquiry
Packaging Details: paper ,wooden cases & film packageFilm
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: two sets per month
Szczegółowy opis produktu
Max Foam Process Height: 1200mm (It can be adjusted by customer's requirments) Max Foam Process Length: 2000mm(It can be adjusted by customer’s requirments)
Max Foam Process Width: 2000mm Cutting Speed: 0-30m/min
Cutting Precision: +/-0.5mm Blade Speed: 0-1200m/min(Adjustable)
Blade Type: Circulating Sawtooth Blade Motor Details: 2x1.5Kw,2x0.75Kw Mitsubishi Servo Motors
Motor Brand: Mitsubishi,Japan Inverter Brand: Delta
High Light:

foam cutting machinery

,

pu foam cutting machine

Collapsible Mount Type Table Horizontal Foam Contour Cutter with Oscillating Blade



Area of Application



Upholstery and furniture industry, mattress, packaging and automotive industry.



Features


1) Computer controlled horizontal blades
2) Conveyor transport for easy block handling
3) Double blades can improve the accuracy greatly and efficiency to cut 3 D products, moreover, to make up for the defects of similar mechanical not reaching the processing of thin sheet-shaped
4) Optional fully automated "Block Support" system
5) Low cost, disposable blades that can be changed by a single operator in minutes



Cutting foam size max:W1200*L2400*H1200MM

Processing precision:±0.5MM

Working speed: 0-10m/min (can be adjusted)

Cutting ways: Loop cutting

Blade line speed: 0-1200m/min(can be adjusted)

Software:QH foam cutting system

Rotating blade motor and X,Y through-drive: Mitsubishi servo motor system

Blade motor: Dongguan

Transducer:TaiDa

Control system: PC +multipole motion control card

Circulating sawtooth knife( Imported from German)

Total power: 8KW

The external size of the machine:L6000*W45000*H3200MM

Air compressor(provide for client)

Parts: Sawtooth knife: 3piece; Repair tool: 1set



Software question:



1. Q: what kind of CAD software the machine uses?



A: For the CAD software ,our machine uses 2004 or 2006(you prefer )



2. Q: about the CAD software, what's its name?



A: The name is Auto CAD Software



3. Q: where do you sell your machines mostly? which countries?



A:our main market is Russian, Middle East, Canada,USA,Austral,Mexico,Brazil for different kind types



4. Q: the operating system which you use is windows, right?



what kind of windows? XP? or Windows 7?



A:Yes ,it is Windows XP.

When operated,Our machine doesn't need to use network,We usually use XP for its stability.Also windows 7 is OK.



5. Q:is your software licensed or it's illegal? ("cracked")



A: our own profiler cutting software is develop by ourselves. It is origina



Q:but the auto-cad and the windows? the auto-cad and the windows are original too

I am asking this question because our company use only licensed software



A:windows is licensed; AutoCAD is testing type. our machines do not include the licensed AutoCAD

if you have any drawing software, you can make the DXF file.



6. Q:the differences between our Fast Wire CNC Cutting machine and Oscillating

Blade CNC Blade cutting Machine.



A: First,Fast wire cutters use high -speed abrasive wire and Oscillating Blade cutters

use high-speed toothed blade.



Secondly,Fast wire CNC cutter is better for the rigid or half rigid foams.and for soft foam material,

the better cutter is Oscillating Blade CNC cutter.



Thirdly,fast wire CNC cutters also can cut soft material.but the dust from the soft material

needs an extra dust pelletizing system and the soft material also is not good for the fast wire

cutter itself.



7. Q:For reputation and website:



A: for the reputation ,we are 8 years golden supplier on Alibaba.

And our engineers have researched our machine more and improved it better and better. We

promise our machine will be as good as we told. Even we keep 10% for the guarantee until to

install the machine well and the client satisfy with our machine.

Collapsible Mount Type Table Horizontal Foam Contour Cutting Machine with Oscillating Blade 0





Collapsible Mount Type Table Horizontal Foam Contour Cutting Machine with Oscillating Blade 1
