|Place of Origin:||Guangdong, China (Mainland)|
|Minimum Order Quantity:||one set|
|Packaging Details:||foam machine Automatic continously foam making machine nude packing together with some paper and plastic film and foam sheet some small spare parts in wooden box one standard machine need 1*20GP 2*40HQ|
|Delivery Time:||45days after receive downpayment|
|Payment Terms:||Western Union, L/C, T/T|
|Supply Ability:||two sets per month|
|Invertor:||Siemens/ Delta/Danfoss||machine pump:||U.S VIKING PUMP/ JAPANESE|
|foam type:||overflow box and spray head||RS pulling system:||R.S.pulling system with the plastic film|
|Conveyer:||For long sheet foam 50m conveyer||Foaming way:||spray head and overflow box|
|Block cutter:||Blade & Saw tooth knife Type||Orzecznictwo:||CE|
|foaming height:||1.0-1.25m||control system:||German siemens plc and invertor|

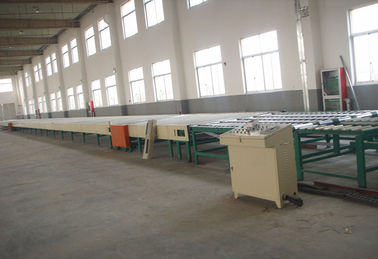

Horizontal Continuously Polyurethane Sponge Foam Production Line for Furniture and Pillow
Main technique parameters and equipments
(1)The whole machine parts specifications:
1, Foaming controlling Platform (standard) L3m×W2.52m×H0.7m
2, Oven declining board (standard) L6.8m×W0.98m～2.3m
3, Oven side links (standard) L18m×W2.3m×H1.2m
4, Oven machine frame (standard) L18m ×W4m×H3m
5, Oven inner conveyer line (standard) L18m×W2.3m×H0.83m
6, Foam block cutter machine (standard) W2.3m×H1.30m(knife belt with cross type )
7, Side film lift system one set
Main technique specification:
|Oven Length||18m||Inner Conveyer length||
|Foaming Height||1.0-1.25m||Side Borar Adjustable Width||
|Foaming Width||1.0-2.25m||Conveyer Belt Speed||
|Foaming Density||8-100kg/m3||Fall Plate||
Six section adjustable
|Total Power||130KW||Total output||
Total length 35m×Total width 4m×Total Height 3m
|Foaming material Group||
13 groups, man-machine interface, both manual and automatically computer control
|Max total output||
|Material spraying way||
① The way of down sprayer head (upper, down, front, back can be adjusted) ② the way of trough overflow pipe.
|Controlling way of foaming||
①PLC controlling, can continuously foaming two different formulas in one time
|Mixing –head motor||
ZHMACH Horizontal Continuously foam machine is the horizontal continous foaming machine line that can make the foam for mattress and sofa and flexible foam in low pressure. We use the siemens invertor/motor and U.S. viking pump and some good spare parts that good for make the flexible foam. The density we can make is from D8-D100 and we can add abt 50% of the lime powder during density above D23.
Pneumatic, flow meter equipments types
|K-301L/75DA cross valve||G2″||POP, PPG,CaCO3,Foam||3||
|K-301L/63DA p cross valve||G1″||TDI foam||1||Korea|
|K-301L/32DA cross valve||G½″||Other small material, Flame retardant, Anti-yellow||9||Korea|
|DK800 glass flow meter||20-200 L/h||AIR||1||
|FA10-15 glass flow meter||40~400L/H||H2O||1||
|FA10-25F glass flow meter||150~1500L/H||MC||1||
|FA10-25F glass flow meter||600~6000L/H||TDI||1|
|Transducer speed adjusted head||Φ25*2000mm||foam||1||Qianghui|
How is the packing of the machine?
The entire machine will be nude packing. Some of the parts will be pack in wooden case. Others will be simple pack with paper or foam sheet with plastic film.
How many container will be needed for the whole set of machine?
For the standard YAFA-Automatic continous foam machine Total three containers is enough 2*40HQ+1*20GP. In order to save the place and the cost of delivery we will also put some parts that inside the raw material tank.
We will try the best way to pack all the machine well and also save the freight cost.
Q: How many days for the install and testing of the machine?
A: After all the machine in your factory we will send 1-2 engineer help to install the machine you must send someone to help about 30 days installation will finished. After that one electrician and one foaming engineer will come to connecting the cable and run the machine in 15days. Total 45days the machine can be running.
Q: For the cost of the engineer how much I need to pay?
A: You need to pay USD40 one day for one engineer and also need to pay for the visa fee turn-round ticket fee and food hotel.
Q:What kind of raw material tools we need to prepare for the testing?
A: We will send you a list for the tools that you need to prepare for testing and also can help to buy if you required.
Q: After the machine testing if we need some engineer to stay in our factory can you help to find?
A: Sure we can help to hire one experience engineer to work in your factory but you need to discuss the salary and all details with him.
Q:During the foaming if we have some problems abt the foam and the machine how can we do ?
A: You can just call our after sale manager explain for the situation or send some picture we will help to handle within 24hours.
The main part of the machine
